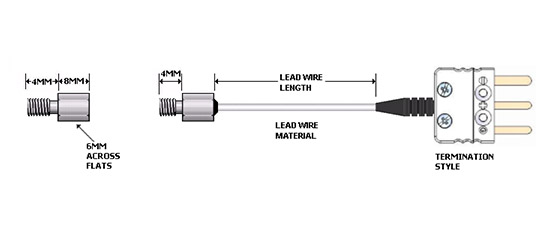

RF2 - 8-32 Bolt RTD Configurator
Data Sheet
Element Type
100 Ω DIN 00385 (thin film)
Element Accuracy
Class A (0.06%)
Class B (0.12%)
Wire Configuration
2-wire
3-wire
Thread Size
8-32 (8mm long hex)
Lead Wire Material
Fluoropolymer (400°F)
Lead Wire Length (6-600 inches)
Termination
2" stripped leads (bare ends)
Standard male 2-pin plug (400°F)
Standard male 3-pin plug (400°F)
Standard 2-pin female jack (400°F)
Standard 3-pin female jack (400°F)
Miniature male 2-pin plug (400°F)
Miniature male 3-pin plug (400°F)
Miniature female 2-pin jack (400°F)
Miniature female 3-pin jack (400°F)
Dual molded male 4-pin plug (400°F) (for dual 2 wire)
Dual molded female 4-hole jack (400°F) (for dual 2 wire)
2" stripped leads w/ pin terminals
2" stripped leads w/ wire ferrules
Special Features (Optional)
Cable Clamp
Mating connector
Rubber strain relief for mini connector
