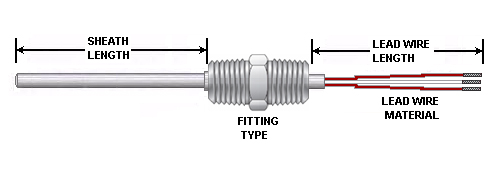

RK2 - Replacement Element w/ Fitting RTD Configurator
Data Sheet
Element Type
100 Ω DIN 00385 (thin film)
500 Ω DIN 00385 (thin film)
1000 Ω DIN 00385 (thin film)
120 Ω Nickel DIN 00672 (thin film)
100 Ω DIN 003916 (wire wound)
500 Ω DIN 003916 (wire wound)
10 Ω copper (thin film)
Element Accuracy
Class A (0.06%)
Class B (0.12%)
Wire Configuration
2-wire
3-wire
4-wire
2-wire (Dual)
3-wire (Dual)
Sheath Diameter
0.125" (3.2mm) (1/8")
0.156" (4mm)
0.188" (4.8mm) (3/16")
0.236" (6mm)
0.250" (6.4mm) (1/4")
0.314" (8mm) (5/16")
0.375" (9.5mm) (3/8")
Sheath Length (2-60 inches)
Lead Wire Material
Fiberglass (800°F)
Fluoropolymer (400°F)
Fiberglass with stainless steel braid (800°F)
Fluoropolymer with stainless steel braid (400°F)
Fiberglass with armor cable (800°F)
Fluoropolymer with armor cable (400°F)
Lead Wire Length (6-999 inches)
Head Mount Fitting
1/2” npt x 1/2" npt double thread
1/2” npt double thread spring loaded
1/2” npt x 1/2" npt double threadspring loaded w/ oil seal
1/2” npt x 3/4" npt double thread
3/4” npt x 3/4" npt double thread
Single threaded brass compression (no process thread)
Single threaded stainless compression (no process thread)
1/2” npt x 1" npt double thread
Special Features (Optional)
Flat tip probe
Epoxy Seal
Fluoropolymer covered probe
RTD Color Code
White-White-Red (Fluoropolymer)
Black-White-Red (Fluoropolymer)
Blue-Orange-White (Fluoropolymer)
