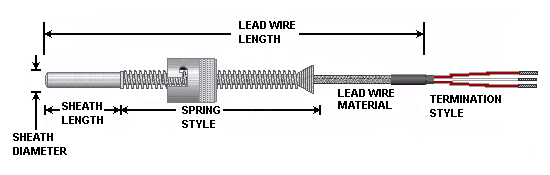

RA1 - Adjustable Bayonet Spring RTD Configurator
Data Sheet
Element Type
100 Ω DIN 00385 (thin film)
500 Ω DIN 00385 (thin film)
1000 Ω DIN 00385 (thin film)
120 Ω Nickel DIN 00672 (thin film)
100 Ω DIN 003916 (wire wound)
500 Ω DIN 003916 (wire wound)
10 Ω copper (thin film)
Element Accuracy
Class A (0.06%)
Class B (0.12%)
Wire Configuration
2-wire
3-wire
4-wire
2-wire (Dual)
3-wire (Dual)
Sheath Diameter
0.118" (3mm)
0.125" (3.2mm) (1/8")
0.156" (4mm)
0.188" (4.8mm) (3/16") (standard)
0.236" (6mm)
0.250" (6.4mm) (1/4")
0.314" (8mm) (5/16")
Sheath Length
1/4"
3/8"
1/2"
5/8"
3/4"
1"
1.25"
1.5"
1.75"
2"
Lead Wire Material
Fiberglass (800°F)
Fluoropolymer (400°F)
Fiberglass with stainless steel braid (800°F)
Fluoropolymer with stainless steel braid (400°F)
Lead Wire Length (12-999 inches)
Cap/Spring Style
7/16" ID Single slot (standard cap) / 1/4"OD x 10" spring
12.5mm ID double slot / 1/4"OD x 10" spring
14.7mm ID double slot / 1/4"OD x 10" spring
7/16" ID Single slot (standard cap) / 1/4"OD x 6" spring
12.5mm ID double slot / 1/4"OD x 6" spring
14.7mm ID double slot / 1/4"OD x 6" spring
Termination
2" stripped leads (bare ends)
2" stripped leads w/ spade lugs
Standard male 2-pin plug (400°F)
Standard male 3-pin plug (400°F)
Standard 2-pin female jack (400°F)
Standard 3-pin female jack (400°F)
Miniature male 2-pin plug (400°F)
Miniature male 3-pin plug (400°F)
Miniature female 2-pin jack (400°F)
Miniature female 3-pin jack (400°F)
Dual molded male 4-pin plug (400°F) (for dual 2 wire)
Dual molded female 4-hole jack (400°F) (for dual 2 wire)
2" stripped leads w/ pin terminals
2" stripped leads w/ wire ferrules
Extra long lead wire length (beyond 2" stripped leads)
Special Features (Optional)
Tip
Flat tip probe
Drill point tip
Epoxy Seal
Cable Clamp
Bx Connector
Mating connector
Moisture protection boot on connector
