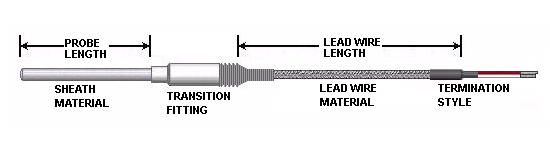

TL1 - Mineral Insulated w/ Lead Wires Thermocouple Configurator
Data Sheet
Calibration
Type J
Type K
Type T
Type E
Type J (Special Limits)
Type K (Special Limits)
Type T (Special Limits)
Type E (Special Limits)
Sheath Diameter
0.032" (0.8mm)
0.040" (1mm)
0.059" (1.5mm)
0.062" (1.6mm)(1/16")
0.079" (2mm)
0.092" (2.3mm)
0.118" (3mm)
0.125" (3.2mm) (1/8")
0.156" (4mm)
0.177" (4.5mm)
0.188" (4.8mm) (3/16") (standard)
0.236" (6mm)
0.250" (6.4mm) (1/4")
0.314" (8mm) (5/16")
0.375" (9.5mm) (3/8")
Sheath Material
304SS
316SS
NCONEL (600)
446SS
310SS
Hastelloy
Pyrosil D
Sheath Length (0.25-600 inches)
Junction
Grounded (Single)
Ungrounded (Single)
Exposed (Single)
Exposed & recessed (Single)
Grounded (Dual)
Ungrounded & isolated (Dual)
Ungrounded Common (Dual)
Exposed & isolated (Dual)
Transition Fitting
3/8"OD X 1.25" w/ strain relief spring
1/4"OD X 1.25" w/ strain relief spring
3/16"OD X 1" w/ strain relief spring
3/8"OD X 1.25" (no spring)
1/4"OD X 1.25" (no spring)
3/16"OD X 1" (no spring)
7/16"OD X 2" (no spring)
3/8"OD X 2" (no spring)
Lead Wire Material
Fiberglass (800°F)
Fluoropolymer (400°F)
Polyimide (500°F)
PVC (220°F)
High temperature fiberglass (1200°F)
Fiberglass with stainless steel braid (800°F)
Fluoropolymer with stainless steel braid (400°F)
Fiberglass with armor cable (800°F)
Fluoropolymer with armor cable (400°F)
Polyimide with armor cable (500°F)
High temperature fiberglass with armor cable (1200°F)
Fiberglass with stainless steel braid with armor cable (800°F)
Fluoropolymer with stainless steel braid with armor cable (400°F)
High temp fiberglass with ss steel braid (1200°F)
Lead Wire Length (6-999 inches)
Termination Style
2" stripped leads (bare ends)
2" stripped leads w/ spade lugs
Standard male plug (400°F)
High temp male plug (660°F)
Max temp male plug (800°F)
Ceramic male plug (1200°F)
Solid pin plug
Standard female jack (400°F)
Miniature plug (400°F)
Miniature jack (400°F)
2" stripped leads w/ #6 Ring terminals
Standard 3 pin plug w/ ground wire (400°F)
Dual molded male plug (400°F)
2" stripped leads w/ pin terminals
2" stripped leads w/ wire ferrules
Extra long lead wire length (beyond 2" stripped leads)
Special Features (Optional)
Stranded conductor (Lead wire)
Flat tip probe
Cable Clamp
Bx Connector
Mating connector
Armor cable adapter
Color Code
International IEC 584-3 color coded leads
British color coded leads
German color coded leads
Japanese color coded leads
Reverse polarity color coded leads
French color coded leads
Moisture protection boot on connector
High temperature ceramic potting (1200°F)
Fluoropolymer coated armor cable (Fluoropolymer)
Fluoropolymer covered probe
Free spinning fitting (held on probe by a crimp ring)
Bend
90 degree bend
45 degree bend
Attached Fitting (Optional)
None
1/8" npt single thread
1/4" npt single thread
3/8" npt single thread
1/2" npt single thread
3/4" npt single thread
1/2" npt x 1/2" npt double thread
1/2" npt double thread. Spring loaded
1/2" npt x 1/2" npt double thread. Spring loaded w/ oil seal
1/2" npt x 3/4" npt double thread
3/4" npt x 3/4" npt double thread
Fixed bayonet cap assembly
1/2" npt x 1" npt double thread
1" npt single thread
Adjustable 7/16" ID bayonet cap fitting (1/8" OD & 3mm OD)
Adjustable 12.5mm ID double slot bayonet cap fitting (1/8" OD & 3mm OD)
1/8" npt compression fitting (Brass)
1/8" npt compression fitting (Stainless Steel)
1/4" npt compression fitting (Brass)
1/4" npt compression fitting (Stainless Steel)
1/2" npt compression fitting (Brass)
1/2" npt compression fitting (Stainless Steel)
1" circular mounting flange
Insertion Length (1-144 inches)
