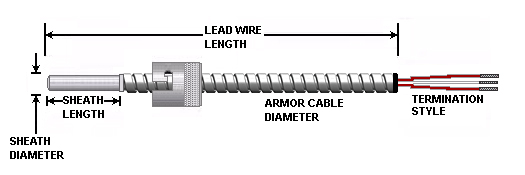

RA2 - Adjustable Bayonet w/ Flex Armor RTD Configurator
Data Sheet
Element Type
100 Ω DIN 00385 (thin film)
500 Ω DIN 00385 (thin film)
1000 Ω DIN 00385 (thin film)
120 Ω Nickel DIN 00672 (thin film)
100 Ω DIN 003916 (wire wound)
500 Ω DIN 003916 (wire wound)
10 Ω copper (thin film)
Element Accuracy
Class A (0.06%)
Class B (0.12%)
Wire Configuration
2-wire
3-wire
4-wire
2-wire (Dual)
3-wire (Dual)
Sheath Diameter
0.118" (3mm)
0.125" (3.2mm) (1/8")
0.156" (4mm)
0.188" (4.8mm) (3/16") (standard)
0.236" (6mm)
0.250" (6.4mm) (1/4")
0.314" (8mm) (5/16")
Sheath Length
1/4"
3/8"
1/2"
5/8"
3/4"
1"
1.25"
1.5"
1.75"
2"
Lead Wire Material
Fiberglass with armor cable (800°F)
Fluoropolymer with armor cable (400°F)
Fiberglass with stainless steel braid (800°F) w/ armor cable
Fluoropolymer with Stainless steel braid (400°F) w/ armor cable
Lead Wire Length (12-999 inches)
Armor Cable Diameter/Cap Size
0.275"OD/7/16" ID single slot (standard cap)
0.210"OD/7/16" ID single slot (standard cap)
0.275"OD/125mm ID double slot (metric cap)
0.210"OD/125mm ID double slot (metric cap)
0.234"OD/7/16" ID single slot (standard cap)
0.234"OD/13mm ID single slot Werner Pfleiderer cap
Termination
2" stripped leads (bare ends)
2" stripped leads w/ spade lugs
Standard male 2-pin plug (400°F)
Standard male 3-pin plug (400°F)
Standard 2-pin female jack (400°F)
Standard 3-pin female jack (400°F)
Miniature male 2-pin plug (400°F)
Miniature male 3-pin plug (400°F)
Miniature female 2-pin jack (400°F)
Miniature female 3-pin jack (400°F)
Dual molded male 4-pin plug (400°F) (for dual 2 wire)
Dual molded female 4-hole jack (400°F) (for dual 2 wire)
2" stripped leads w/ pin terminals
2" stripped leads w/ wire ferrules
Extra long lead wire length (beyond 2" stripped leads)
Special Features (Optional)
Tip
Flat tip probe
Drill point tip
Epoxy Seal
Cable Clamp
Bx Connector
Mating connector
