RB2 - Compression Type RTD Configurator
Data Sheet
Element Type
100 Ω DIN 00385 (thin film)
500 Ω DIN 00385 (thin film)
1000 Ω DIN 00385 (thin film)
120 Ω Nickel DIN 00672 (thin film)
100 Ω DIN 003916 (wire wound)
500 Ω DIN 003916 (wire wound)
10 Ω copper (thin film)
200 Ω DIN 00385 (thin film)
Element Accuracy
Class A (0.06%)
Class B (0.12%)
Wire Configuration
2-wire
3-wire
4-wire
2-wire (Dual)
3-wire (Dual)

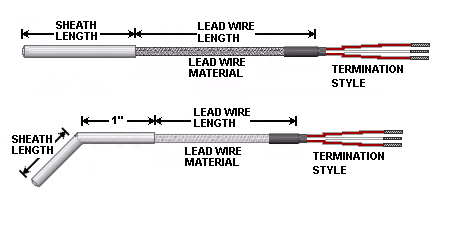

Sheath Diameter
0.118" (3mm)
0.125" (3.2mm) (1/8")
0.156" (4mm)
0.188" (4.8mm) (3/16") (standard)
0.196" (5mm)
0.236" (6mm)
0.250" (6.4mm) (1/4")
0.314" (8mm) (5/16")
0.375" (9.5mm) (3/8")
Sheath Configuration
Straight (standard)
90 Degree bend
45 Degree bend
Sheath Length (1-60 inches, 0.125 increments)
Lead Wire Material
Fiberglass (800°F)
Fluoropolymer (400°F)
Fiberglass with stainless steel braid (800°F)
Fluoropolymer with stainless steel braid (400°F)
Fiberglass with armor cable (800°F) (standard)
Fluoropolymer with armor cable (400°F)
Fiberglass with stainless steel braid with armor cable (800°F)
Fluoropolymer with stainless steel braid with armor cable (400°F)
Fluoropolymer singles (without white outer jacket) (400°F)
Lead Wire Length (6-999 inches)
Termination
2" stripped leads (bare ends)
2" stripped leads w/ spade lugs
Standard male 2-pin plug (400°F)
Standard male 3-pin plug (400°F)
Standard 2-pin female jack (400°F)
Standard 3-pin female jack (400°F)
Miniature male 2-pin plug (400°F)
Miniature male 3-pin plug (400°F)
Miniature female 2-pin jack (400°F)
Miniature female 3-pin jack (400°F)
2" stripped leads w/#6 ring terminals
Dual molded male 4-pin plug (400°F) (for dual 2 wire)
Dual molded female 4-hole jack (400°F) (for dual 2 wire)
2" stripped leads w/ pin terminals
2" stripped leads w/ wire ferrules
Extra long lead wire length (beyond 2" stripped leads)
Special Features (Optional)
1.5" long strain relief spring
1.5" long heat shrink where wire exits the probe
Tip
Flat tip probe
Drill point tip
Epoxy Seal
Cable Clamp
Bx Connector
Mating connector
Armor cable adaptor
Moisture protection boot on connector
Fluoropolymer coated armor cable
Fluoropolymer covered probe
Free spinning fitting (held on probe by a crimp ring)
Transition fitting on tube & wire sensor
RTD Color Code
White-White-Red (Fluoropolymer)
Black-White-Red (Fluoropolymer)
Blue-Orange-White (Fluoropolymer)
Attached Fitting (Optional)
None
1/8" npt single thread
1/4" npt single thread
3/8" npt single thread
1/2" npt single thread
3/4" npt single thread
1/2" npt x 1/2" npt double thread
1/2" npt double thread. Spring loaded
1/2" npt x 1/2" npt double thread. Spring loaded w/ oil seal
1/2" npt x 3/4" npt double thread
3/4" npt x 3/4" npt double thread
Adjustable 7/16" ID bayonet cap fitting (1/8" OD & 3mm OD)
Adjustable 12.5mm ID double slot bayonet cap fitting (1/8" OD & 3mm OD)
1/8" npt compression fitting (Brass)
1/8" npt compression fitting (Stainless Steel)
1/4" npt compression fitting (Brass)
1/4" npt compression fitting (Stainless Steel)
1/2" npt compression fitting (Brass)
1/2" npt compression fitting (Stainless Steel)
Insertion Length (0-50 inches)
