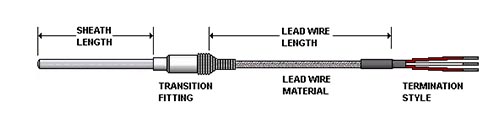

RB5 - Mineral Insulated RTD w/ Lead Wires Configurator
Data Sheet
Element Type
100 Ω DIN 00385 Class A mineral insulated element (500°C rated)
100 Ω DIN 00385 mineral insulated element (800°C rated)
Wire Configuration
2-wire
3-wire
4-wire
2-wire (Dual)
3-wire (Dual)
Sheath Diameter
0.062" (1.6mm) (1/16")
0.125" (3.2mm) (1/8")
0.188" (4.8mm) (3/16") (standard)
0.250" (6.4mm) (1/4")
Transition Fitting
3/8"OD X 1.25" w/ spring
1/4"OD X 1.25" w/ spring
3/8"OD X 1.25" (no spring)
1/4"OD X 1.25" (no spring)
Sheath Length (2-60 inches, 0.125 increments)
Lead Wire Material
Fiberglass (800°F)
Fluoropolymer (400°F)
Fiberglass with stainless steel braid (800°F)
Fluoropolymer with stainless steel braid (400°F)
Fiberglass with armor cable (800°F) (standard)
Fluoropolymer with armor cable (400°F)
Fiberglass with stainless steel braid with armor cable (800°F)
Fluoropolymer with stainless steel braid with armor cable (400°F)
Fluoropolymer singles (without white outer jacket) (400°F)
Lead Wire Length (6-999 inches)
Termination
2" stripped leads (bare ends)
2" stripped leads w/ spade lugs
Standard male 2-pin plug (400°F)
Standard male 3-pin plug (400°F)
Standard 2-pin female jack (400°F)
Standard 3-pin female jack (400°F)
Miniature male 2-pin plug (400°F)
Miniature male 3-pin plug (400°F)
Miniature female 2-pin jack (400°F)
Miniature female 3-pin jack (400°F)
2" stripped leads w/#6 ring terminals
Dual molded male 4-pin plug (400°F) (for dual 2 wire)
Dual molded female 4-hole jack (400°F) (for dual 2 wire)
2" stripped leads w/ pin terminals
2" stripped leads w/ wire ferrules
Extra long lead wire length (beyond 2" stripped leads)
Special Features (Optional)
Cable Clamp
Bx Connector
Mating connector
Armor cable adaptor
Moisture protection boot on connector
Fluoropolymer coated armor cable
Fluoropolymer covered probe
RTD Color Code
White-White-Red (Fluoropolymer)
Black-White-Red (Fluoropolymer)
Blue-Orange-White (Fluoropolymer)
Attached Fitting (Optional)
None
1/8" npt single thread
1/4" npt single thread
3/8" npt single thread
1/2" npt single thread
3/4" npt single thread
1/2" npt x 1/2" npt double thread
1/2" npt double thread. Spring loaded
1/2" npt x 1/2" npt double thread. Spring loaded w/ oil seal
1/2" npt x 3/4" npt double thread
3/4" npt x 3/4" npt double thread
Adjustable 7/16" ID bayonet cap fitting (1/8" OD & 3mm OD)
Adjustable 12.5mm ID double slot bayonet cap fitting (1/8" OD & 3mm OD)
1/8" npt compression fitting (Brass)
1/8" npt compression fitting (Stainless Steel)
1/4" npt compression fitting (Brass)
1/4" npt compression fitting (Stainless Steel)
1/2" npt compression fitting (Brass)
1/2" npt compression fitting (Stainless Steel)
Insertion Length (1-50 inches)
