RB6 - Rigid Mineral Insulated RTD w/Connector Configurator
Data Sheet
Element Type
100 Ω DIN 00385 Class A mineral insulated element (500°C rated)
100 Ω DIN 00385 mineral insulated element (800°C rated)
Wire Configuration
2-wire
3-wire
4-wire
2-wire (Dual)
3-wire (Dual)
Sheath Diameter
0.062" (1.6mm) (1/16")
0.125" (3.2mm) (1/8")
0.188" (4.8mm) (3/16") (standard)
0.250" (6.4mm) (1/4")

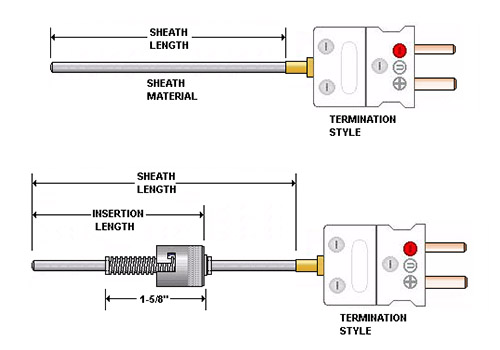

Sheath Length (6-60 inches, 0.125 increments)
Termination
Standard male 2-pin plug (400°F)
Standard male 3-pin plug (400°F)
Standard 2-pin female jack (400°F)
Standard 3-pin female jack (400°F)
Miniature male 2-pin plug (400°F)
Miniature male 3-pin plug (400°F)
Miniature female 2-pin jack (400°F)
Miniature female 3-pin jack (400°F)
Dual molded male 4-pin plug (400°F) (for dual 2 wire)
Dual molded female 4-hole jack (400°F) (for dual 2 wire)
Special Features (Optional)
Tip
Flat tip probe
Drill point tip
Mating connector
Armor cable adaptor
Moisture protection boot on connector
Fluoropolymer covered probe
Free spinning fitting (held on probe by a crimp ring)
Connector mounted with tube adapter
Attached Fitting (Optional)
None
1/8" npt single thread
1/4" npt single thread
3/8" npt single thread
1/2" npt single thread
3/4" npt single thread
1/2" npt x 1/2" npt double thread
1/2" npt double thread. Spring loaded
1/2" npt x 1/2" npt double thread. Spring loaded w/ oil seal
1/2" npt x 3/4" npt double thread
3/4" npt x 3/4" npt double thread
Fixed 7/16" ID bayonet cap assembly (on MGO probe) (1/8" OD, 3mm OD & 3/16" OD)
1" npt single thread
Adjustable 7/16" ID bayonet cap fitting (1/8" OD & 3mm OD)
Adjustable 12.5mm ID double slot bayonet cap fitting (1/8" OD & 3mm OD)
1/8" npt compression fitting (Brass)
1/8" npt compression fitting (Stainless Steel)
1/4" npt compression fitting (Brass)
1/4" npt compression fitting (Stainless Steel)
1/2" npt compression fitting (Brass)
1/2" npt compression fitting (Stainless Steel)
Insertion Length (0-144 inches)
