RM12 - RTD w/ M12 Connector & Embedded 4-20ma Transmitter Configurator
Data Sheet
Element Type
100 Ω DIN 00385 (thin film)
Element Accuracy
Class A (0.06%)
Class B (0.12%)
Wire Configuration
2-wire
3-wire
4-wire
Sheath Diameter
0.236" (6mm)
0.250" (6.4mm) (1/4")
Sheath Length (1-60 inches, 0.125 increments)

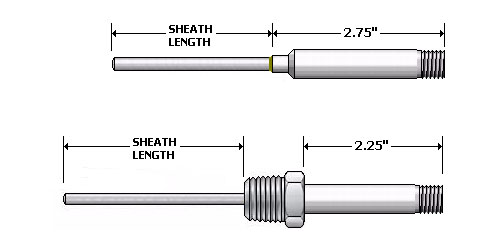

Probe Style
Style 1
Style 2
Attached Fitting (Optional)
None
1/4" npt single thread (style 2 only)
3/8" npt single thread (style 2 only)
1/2" npt single thread (style 2 only)
3/4" npt single thread (style 2 only)
1/8" npt compression fitting (Stainless Steel) (style 1 only)
1/4" npt compression fitting (Stainless Steel) (style 1 only)
1/2" npt compression fitting (Stainless Steel) (style 1 only)
3/8" npt compression fitting (Stainless Steel) (style 1 only)
Special Features (Optional)
4-20 Milliamp transmitter (embedded style)
