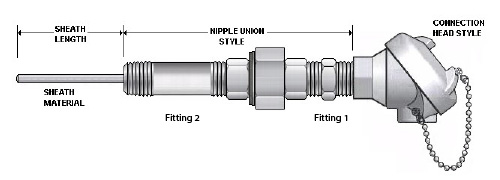

RQ1 - Nipple Union with Connection Head RTD Configurator
Data Sheet
Element Type
100 Ω DIN 00385 (thin film)
500 Ω DIN 00385 (thin film)
1000 Ω DIN 00385 (thin film)
120 Ω Nickel DIN 00672 (thin film)
100 Ω DIN 003916 (wire wound)
500 Ω DIN 003916 (wire wound)
10 Ω copper (thin film)
Element Accuracy
Class A (0.06%)
Class B (0.12%)
Wire Configuration
2-wire
3-wire
4-wire
2-wire (Dual)
3-wire (Dual)
Sheath Diameter
0.118" (3mm)
0.250" (6.4mm) (1/4")
Nipple Union Style 1
1/2"NPT x 1/2"NPT double thread
1/2"NPT x 3/4"NPT double thread
1/2"NPT x 1/2"NPT double thread (with internal compression fitting)
1/2"NPT x 1/2"NPT double thread spring loaded w/oil seal
Sheath Length (2-60 inches, 0.125 increments)
Nipple Union Style 2
1/2"NPT x 1/2"NPT double thread
3/4"NPTx 3/4"NPT double thread
1/2"NPT Pipe 3" long
1/2"NPT Pipe 4" long
3/4"NPT Pipe 3" long
3/4"NPT Pipe 4" long
No Fitting
Spring loaded
Non spring loaded (fixed sheath)
Connection Head Style
Cast aluminum (standard)
Small cast aluminum
Flip top head cast aluminum
Cast steel
Stainless steel
Cast iron
Polypropylene
Explosion proof cast aluminum
Explosion proof 316 stainless steel
Explosion proof cast aluminum DUAL conduit
Mini aluminum screw down cover
Cast aluminum NEMA 4X IP68 rated
Special Features (Optional)
420 milliamp transmitter
Non Isolated (hockey puck style)
Isolated (hockey puck style)
Transmitter Temperature Range (1-1200 °F/°C)
