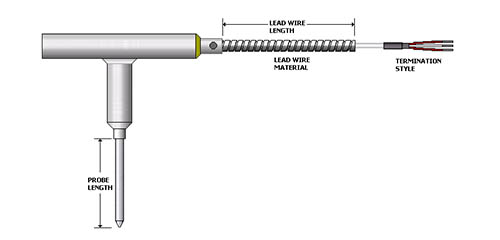

RS2 - Sharp Tip Probe with T-handle RTD Configurator
Data Sheet
Element Type
100 Ω DIN 00385 (thin film)
500 Ω DIN 00385 (thin film)
1000 Ω DIN 00385 (thin film)
120 Ω Nickel DIN 00672 (thin film)
100 Ω DIN 003916 (wire wound)
500 Ω DIN 003916 (wire wound)
10 Ω copper (thin film)
Element Accuracy
Class A (0.06%)
Class B (0.12%)
Wire Configuration
2-wire
3-wire
4-wire
2-wire (Dual)
3-wire (Dual)
Sheath Diameter
0.250" (6.4mm) (1/4")
Sheath Length (1-11 inches, 0.125 increments)
Lead Wire Material
Fiberglass with armor cable (800°F) (standard)
Fluoropolymer with armor cable (400°F)
Fiberglass with stainless steel braid with armor cable (800°F)
Fluoropolymer with stainless steel braid with armor cable (400°F)
Lead Wire Length (12-600 inches)
Termination
2" stripped leads (bare ends)
2" stripped leads w/ spade lugs
Standard male 2-pin plug (400°F)
Standard male 3-pin plug (400°F)
Standard 2-pin female jack (400°F)
Standard 3-pin female jack (400°F)
Miniature male 2-pin plug (400°F)
Miniature male 3-pin plug (400°F)
Miniature female 2-pin jack (400°F)
Miniature female 3-pin jack (400°F)
Dual molded male 4-pin plug (400°F) (for dual 2 wire)
Dual molded female 4-hole jack (400°F) (for dual 2 wire)
2" stripped leads w/ pin terminals
2" stripped leads w/ wire ferrules
Extra long lead wire length (beyond 2" stripped leads)
Special Features (Optional)
Cable Clamp
Bx Connector
Mating connector
