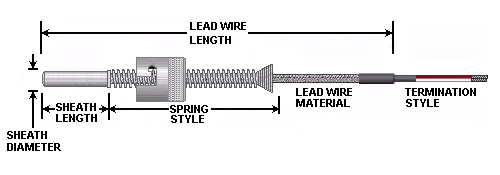

TA1 - Adjustable Bayonet Spring Thermocouple Configurator

Adjustable Bayonet Spring thermocouples are versatile providing an adjustable depth solution for fitting thermocouples into a variety of thermowell depths. The bayonet cap may be threaded up and down the spring for up to a 10” hole depth. TA1 thermocouples are available in common type J, K, T and E calibrations. Other calibrations can be requested. The TA1 style T/C is available with a variety of selectable probe sheath lengths up to two-inch, lead wire insulations, outer protections, termination options and special features. Standard sizes are kept in stock and a non-standard thermocouple can be completed and delivered in 2 weeks or less.

Solid conductor (Lead wire)
Tip
Epoxy Seal
Cable Clamp
Bx Connector
Mating connector
Color Code
Moisture protection boot on connector
Add ground wire to TC & RTD
Silver solder thermocouple junction
