TA6 - Miniature Adjustable Bayonet Spring Thermocouple Configurator

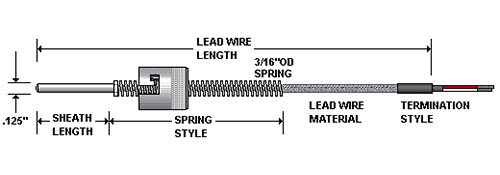

Miniature adjustable bayonet spring thermocouples offer a compact and versatile solution in applications where the sensing hole is a small diameter size of .125”. The bayonet will fit inside a standard type of adapter and may be adjusted ten inches up and down the spring for variable depth of the sensing tip. The T/C is available in common type J, K, T and E calibrations. It can be configured with sheath tip lengths up to one.” The sensor comes with a variety of selectable termination options. Other calibrations are available upon request.

Data Sheet
