TA7 - Head & Groove Bayonet Thermocouple Configurator

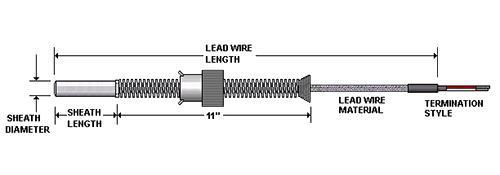

Head ∓ groove bayonet thermocouples fit in an 8 MM hole. A 12MM OD double eared cap spins over the entire length of the 280MM length spring. The thermocouple serves as an OEM replacement for Negri Bossi, Sandretto, Boy, and MIR injection molding equipment. A ¼” BSP fitting is included with the thermocouple. The T/C is available in common type J, K, T and E calibrations. It can be configured with sheath tip lengths up to two.” The sensor comes with a variety of selectable termination options. Other calibrations are available upon request.

Solid conductor (Lead wire)
Tip
Epoxy Seal
Cable Clamp
Bx Connector
Mating connector
Color Code
Moisture protection boot on connector
Add ground wire to TC & RTD
Silver solder thermocouple junction
