TA8 - Adjustable Bolt Spring Thermocouple Configurator

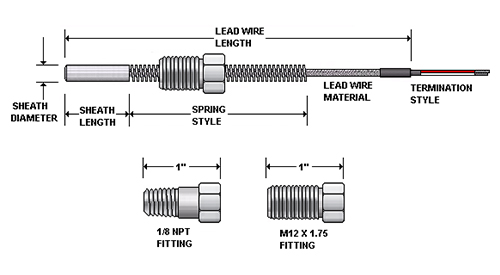

Adjustable bolt spring thermocouples offer a bolt adjustment mechanism with precise positioning of the threaded bolt across the entire length of a selectable spring of six or ten inches. The spring has an OD of 0.254 inch. 20 AWG stranded wire is the standard for 0.156 inch and larger diameter tips and 24 AWG wire is the standard for tips of 0.125 and 0.118 diameters. Their sturdy construction ensures durability and reliability, making them suitable for use in challenging environments where vibration, high temperatures, or mechanical stress are prevalent. TA8 thermocouples are available in type J, K, T and E calibrations. Other calibrations are available by request. The T/C is available with a variety of termination options.

Data Sheet
