TB2 - Compression Type Thermocouple Configurator

Compression type thermocouples are a common tube and wire probe style designed for general purpose use. These thermocouples feature selectable probe OD sizes from 0.118 to 0.375” diameter. The probe can be specified straight, or at 45- and 90-degree angle bends. The TB2 T/C is available with a single or dual sensing junction/s with the junction being ungrounded or grounded. Compression type thermocouples come standard in type J, K, T and E calibrations. Other calibrations are available by request. The T/C is available with a variety of lead wire insulations, outer protections, compression fitting and termination options.

Calibration

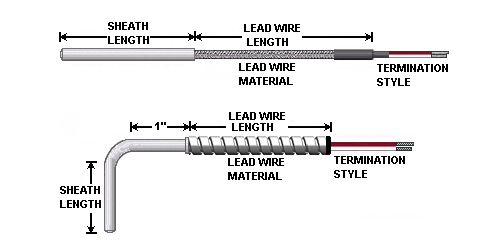

Sheath Diameter
Bend Type
Sheath Length (0.25-600 inches)
Junction
Lead Wire Material
Lead Wire Length (6-999 inches)
Termination Style
Special Features (Optional)	Solid conductor (Lead wire) 1.5" long strain relief spring 1.5" long heat shrink where wire exits the probe Tip Epoxy Seal Cable Clamp Bx Connector Mating connector Armor cable adapter Color Code Moisture protection boot on connector Fluoropolymer coated armor cable (Fluoropolymer) Fluoropolymer covered probe Free spinning fitting (held on probe by a crimp ring) Transition fitting on tube & wire sensor
Attached Fitting (Optional)
Insertion Length (1-50 inches)
