TC1 - Ring Terminal Type Thermocouple Configurator

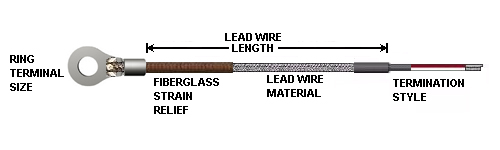

Ring terminal thermocouples are temperature sensors commonly used in a variety of applications to sense surface temperature. The ring terminal hole comes in various screw sizes from # 6 up to ½” ring hole sizes. In addition, the TC1 comes standard in type J, K, T and E calibrations. Other calibrations are available by request. The ring terminal thermocouple comes with a strain relief sleeve to prevent excess wearing at the point where the lead wire exits the neck of the ring terminal. The lead wire protection, length and termination are configurable to the application.

Solid conductor (Lead wire)
1.5" long strain relief spring
1.5" long heat shrink where wire exits the probe
Tip
Epoxy Seal
Epoxy Seal
Cable Clamp
Bx Connector
Mating connector
Color Code
Moisture protection boot on connector
1200°F rated ring terminal
