TC3 - Brass Bracket Type Thermocouple Configurator

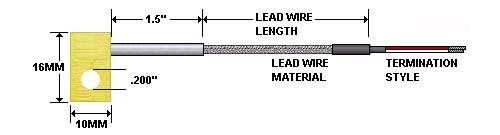

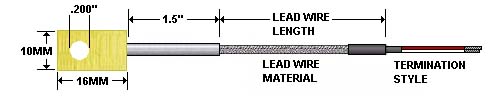

Brass bracket thermocouples are temperature sensors that come with a 10MM X 16MM brass bracket attached to the probe end available in a straight and right angle 90-degree orientation. The sturdy brass bracket securely holds the sensing element in place, ensuring reliable and stable readings. The TC3 thermocouple may be ordered with a grounded or ungrounded junction and comes in standard type J, K, T and E calibrations. Other calibrations are available by request. Lead wire length, protection and termination options and special features may be specified.

Solid conductor (Lead wire)
1.5" long strain relief spring
1.5" long heat shrink where wire exits the probe
Epoxy Seal
Cable Clamp
Bx Connector
Mating connector
Color Code
Moisture protection boot on connector
