TD1 - Mounting Bracket w /4mm OD Probe Thermocouple Configurator

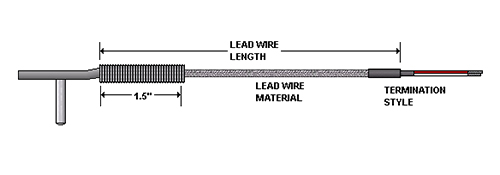

The mounting bracket thermocouple with a 4mm OD probe is designed to be a universal replacement thermocouple for similar European made bracket thermocouples having a variable probe to mounting hole center distance and probe length. The mounting hole on the TD1 is oblong measuring 0.217 X 0.162” allowing centerline adjustment of the probe to the hole center enabling the TD1 to serve as a replacement for multiple thermocouples with different mounting centers. The TD1 thermocouple may be ordered with a grounded or ungrounded junction and comes in standard type J, K, T and E calibrations. Other calibrations are available by request. The probe length can be specified from 5MM to 75MM in length. Lead wire length, protection and termination options and special features may be specified.

Solid conductor (Lead wire)
Cable Clamp
Bx Connector
Mating connector
Color Code
Moisture protection boot on connector
