TE2 - Polyimide Adhesive Thermocouple Configurator

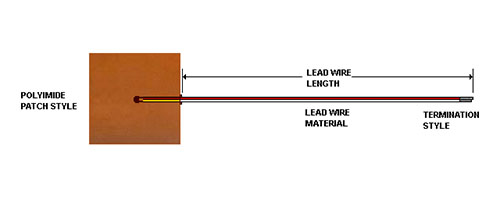

Polyimide adhesive thermocouples are fast response surface temperature sensors consisting of selectable stranded or solid T/C conductor wire combined with a sensing junction encapsulated in a Polyimide patch. The patch is available in square, rectangular, or round shapes. The patch has heat resistant Silicone adhesive backing on one side allowing for attachment to surfaces. The Polyimide material allows for sensing temperatures up to 392 degrees F. Polyimide adhesive thermocouples come in standard type J, K, T and E calibrations. Other calibrations are available by request. Lead wire options include Fluoropolymer and Polyimide insulated leads with lengths available from 6-600 inches. Various termination options and special features are also available.

Solid conductor (Lead wire)
Cable Clamp
Mating connector
Rubber strain relief for mini plug
