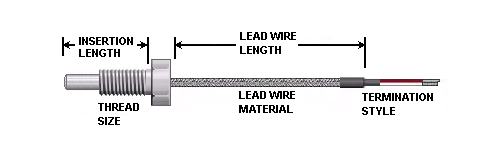

TF1 - Threaded Bolt Type Thermocouple Configurator

Threaded bolt thermocouples are temperature sensors consisting of 20 AWG stranded or solid conductor thermocouple wire, sensing probe enclosed inside a free spinning standard or metric threaded bolt. These thermocouples are commonly used in injection molding machine nozzle applications where the nozzle is equipped with a thread port to accept the thermocouple. Insertions depths range from 3/8 up to 1 1/8 inch. They are also found on platens and other applications having a threaded location for a thermocouple. The TF1 thermocouple may be ordered with a grounded or ungrounded junction and comes in standard type J, K, T and E calibrations. Other calibrations are available by request. Lead wire length, protection and termination options and special features may be custom specified.

Solid conductor (Lead wire)
1.5" long strain relief spring
1.5" long heat shrink where wire exits the probe
Tip
Epoxy Seal
Cable Clamp
Bx Connector
Mating connector
Color Code
Moisture protection boot on connector
Silver solder thermocouple junction
Bolt
Spring loaded bolt
