TG2 - Hose Clamp Type Thermocouple Configurator

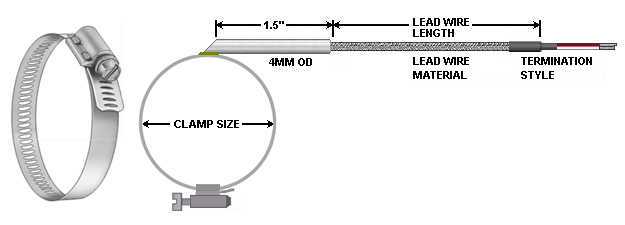

Hose clamp thermocouples are easy to install temperature sensors designed for accurate measurement of pipe and cylinder surfaces. The TG2 hose clamp thermocouple consists of 20 AWG stranded or solid conductor thermocouple wire with the junction inside of a probe that is attached to an adjustable worm drive hose clamp. Clamp ranges begin at 7/32 and adjust up to 12 ¼ inches in diameter sizes. Custom sizes are available by request. The TG2 T/C is available with single, dual, grounded, or ungrounded sensing junction/s and comes in standard type J, K, T and E calibrations. Other calibrations are available by request. Lead wire length, protection and termination options and special features may be custom specified.

Solid conductor (Lead wire)
1.5" long strain relief spring
1.5" long heat shrink where wire exits the probe
Epoxy Seal
Cable Clamp
Bx Connector
Mating connector
Color Code
Moisture protection boot on connector
