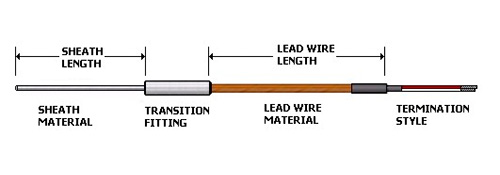

THR1 - Hot Runner Style Thermocouple Configurator
Data Sheet
Calibration
Type J
Type K
Sheath Diameter
0.032" (0.8mm)
0.040" (1mm)
0.059" (1.5mm)
0.062" (1.6mm)(1/16")
0.079" (2mm)
0.092" (2.3mm)
0.118" (3mm)
Sheath Material
304SS
316SS
NCONEL (600)
Sheath Length (1-24 inches)
Junction
Grounded (Single)
Ungrounded (Single)
Transition Fitting
1/4"OD X 1.25" w/ strain relief spring
3/16"OD X 1" w/ strain relief spring
1/4"OD X 1.25" (no spring)
3/16"OD X 1" (no spring)
Lead Wire Material
Fiberglass (800°F)
Fluoropolymer (400°F)
Polyimide (500°F)
Lead Wire Length (6-600 inches)
Termination Style
2" stripped leads (bare ends)
2" stripped leads w/ spade lugs
Standard male plug (400°F)
Standard female jack (400°F)
Miniature plug (400°F)
Miniature jack (400°F)
