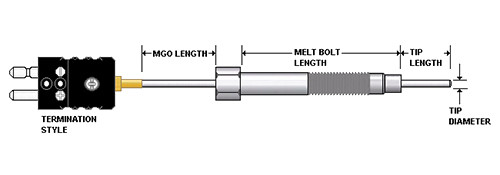

TK4 - Melt Bolt w/ Rigid Extension Thermocouple Configurator
Data Sheet
Melt Bolt Length
3"
4"
6"
7"
9"
12"
14"
Calibration
Type J
Type K
Type T
Type E
Type J (Special Limits)
Type K (Special Limits)
Type T (Special Limits)
Type E (Special Limits)
Tip Diameter
0.125" OD (standard)
0.188" OD
0.250"
Tip Length
Flush
1/8"
1/4"
3/8"
1/2"
5/8"
3/4"
1"
1-1/8"
1-1/4"
Tip Material
304 SS (standard)
316 SS
Inconel (600)
446 SS
310 SS
Hastaloy
Pyrosil D
Junction
Grounded
Ungrounded
Exposed
Grounded (Dual Junction)
Ungrounded & isolated (Dual Junction)
Ungrounded Common (Dual Junction)
Exposed & isolated (Dual Junction)
MGO Length (1-144 inches)
Termination
2" stripped leads (bare ends)
Standard male plug (400°F)
High temp male plug (660°F)
Max temp male plug (800°F)
Solid pin plug
Standard female jack (400°F)
Standard 3 pin plug w/ ground wire (400°F)
Dual molded male plug (400°F)
Dual molded female jack (400°F)
Special Features (Optional)
Mating connector
