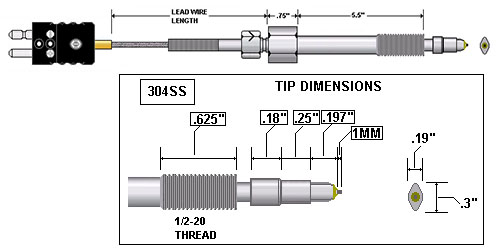

TK5 - Elliptical Tip Melt Bolt Type Thermocouple Configurator
Data Sheet
Style
Adjustable elliptical tip (316SS)
Eliptical Tip Length
5 mm
14 mm
Calibration
Type J
Type K
Type T
Type E
Type J (Special Limits)
Type K (Special Limits)
Type T (Special Limits)
Type E (Special Limits)
Tip Diameter
0.190” X 0.300”
Junction
Grounded (Single)
Ungrounded (Single)
Lead Wire Material
Fiberglass (800°F)
Fluoropolymer (400°F)
Polyimide (500°F)
Fiberglass with stainless steel braid (800°F)
Fluoropolymer with stainless steel braid (400°F)
Fiberglass with armor cable (800°F)
Fluoropolymer with armor cable (400°F)
Polyimide with armor cable (500°F)
Fiberglass with stainless steel braid with armor cable (800°F)
Fluoropolymer with stainless steel braid with armor cable (400°F)
Lead Wire Length (12-999 inches)
Termination
2" stripped leads (bare ends)
Standard male plug (400°F)
High temp male plug (660°F)
Max temp male plug (800°F)
Solid pin plug
Standard female jack (400°F)
Miniature plug (400°F)
Miniature jack (400°F)
2" stripped leads w/ pin terminals
2" stripped leads w/ wire ferrules
Extra long lead wire length (beyond 2" stripped leads)
Special Features (Optional)
Cable Clamp
Bx Connector
Mating connector
Moisture protection boot on connector
