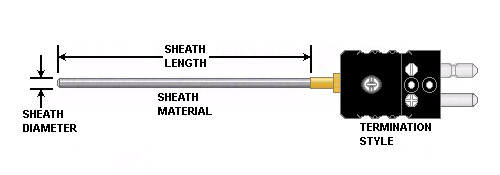

TM1 - Rigid Type Thermocouple Configurator
Data Sheet
Calibration
Type J
Type K
Type T
Type E
Type J (Special Limits)
Type K (Special Limits)
Type T (Special Limits)
Type E (Special Limits)
Sheath Diameter
0.032" (0.8mm)
0.040" (1mm)
0.059" (1.5mm)
0.062" (1.6mm)(1/16")
0.079" (2mm)
0.092" (2.3mm)
0.118" (3mm)
0.125" (3.2mm) (1/8")
0.188" (4.8mm) (3/16")
0.250" (6.4mm) (1/4")
Sheath Material
304SS
316SS
NCONEL (600)
446SS
310SS
Hastelloy
Pyrosil D
Sheath Length (0.25-600 inches)
Junction
Grounded (Single)
Ungrounded (Single)
Exposed (Single)
Exposed & recessed (Single)
Grounded (Dual)
Ungrounded & isolated (Dual)
Ungrounded Common (Dual)
Exposed & isolated (Dual)
Termination Style
Standard male plug (400°F)
High temp male plug (660°F)
Max temp male plug (800°F)
Ceramic male plug (1200°F)
Solid pin plug
Standard female jack (400°F)
Miniature plug (400°F)
Miniature jack (400°F)
Standard 3 pin plug w/ ground wire (400°F)
Dual molded male plug (400°F)
High temp female jack (660°F)
Max temp female jack (800°F)
Ceramic female jack (1200°F)
Special Features (Optional)
Tip
Flat tip probe
Drill point tip
Mating connector
Moisture protection boot on connector
Fluoropolymer covered probe
Free spinning fitting (held on probe by a crimp ring)
Connector mounted with tube adapter
Bend
90 degree bend
45 degree bend
Two connectors mounted with tube adapter
Attached Fitting (Optional)
None
1/8" npt single thread
1/4" npt single thread
3/8" npt single thread
1/2" npt single thread
3/4" npt single thread
1/2" npt x 1/2" npt double thread
1/2" npt double thread. Spring loaded
1/2" npt x 1/2" npt double thread. Spring loaded w/ oil seal
1/2" npt x 3/4" npt double thread
3/4" npt x 3/4" npt double thread
Fixed bayonet cap assembly
1/2" npt x 1" npt double thread
1" npt single thread
Adjustable 7/16" ID bayonet cap fitting (1/8" OD & 3mm OD)
Adjustable 12.5mm ID double slot bayonet cap fitting (1/8" OD & 3mm OD)
1/8" npt compression fitting (Brass)
1/8" npt compression fitting (Stainless Steel)
1/4" npt compression fitting (Brass)
1/4" npt compression fitting (Stainless Steel)
1/2" npt compression fitting (Brass)
1/2" npt compression fitting (Stainless Steel)
1" circular mounting flange
Insertion Length (1-144 inches)
