TM2 - Semi-finished Thermocouple Configurator
Data Sheet
Calibration
Type J
Type K
Type T
Type E
Type J (Special Limits)
Type K (Special Limits)
Type T (Special Limits)
Type E (Special Limits)

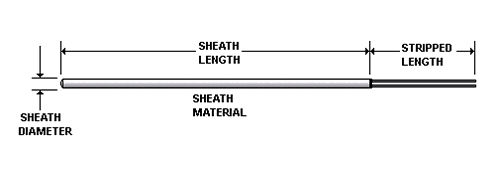

Sheath Diameter
0.032" (0.8mm)
0.040" (1mm)
0.059" (1.5mm)
0.062" (1.6mm)(1/16")
0.079" (2mm)
0.092" (2.3mm)
0.118" (3mm)
0.125" (3.2mm) (1/8")
0.188" (4.8mm) (3/16")
0.250" (6.4mm) (1/4")
Sheath Material
304SS
316SS
NCONEL (600)
446SS
310SS
Hastelloy
Sheath Length (0.25-600 inches)
Junction
Grounded (Single)
Ungrounded (Single)
Exposed (Single)
Grounded (Dual)
Ungrounded & isolated (Dual)
Ungrounded Common (Dual)
Exposed & isolated (Dual)
Stripped Length (0.125-3 inches)
