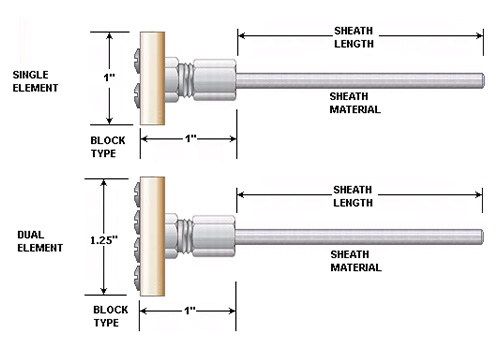

TM3 - Mineral Insulated w/ Compensated Mini Terminal Block Thermocouple Configurator
Data Sheet
Calibration
Type J
Type K
Type T
Type E
Type J (Special Limits)
Type K (Special Limits)
Type T (Special Limits)
Type E (Special Limits)
Sheath Diameter
0.062" (1.6mm)(1/16")
0.125" (3.2mm) (1/8")
0.188" (4.8mm) (3/16")
0.250" (6.4mm) (1/4")
Sheath Material
304SS
316SS
NCONEL (600)
446SS
310SS
Hastelloy
Sheath Length (1-144 inches)
Junction
Grounded (Single)
Ungrounded (Single)
Exposed (Single)
Grounded (Dual)
Ungrounded & isolated (Dual)
Ungrounded Common (Dual)
Exposed & isolated (Dual)
Terminal Block Type
2010 (Single junction) thermo-set 400°F
2110 (Single junction) high temp thermo-set 800°F
2011 (Single junction) thermo-set with bracket 400°F
2111 (Single junction) high temp thermo-set with bracket 800°F
2210 (Dual junction) thermo-set 400°F
2310 (Dual junction) high temp thermo-set 800°F
2211 (Dual junction) thermo-set with bracket 400°F
2311 (Dual junction) high temp thermo-set with bracket 800°F
