TN2 - Mineral Insulated Replacement Element Thermocouple Configurator
Data Sheet
Calibration
Type J
Type K
Type T
Type E
Type J (Special Limits)
Type K (Special Limits)
Type T (Special Limits)
Type E (Special Limits)
Sheath Diameter
0.125" (3.2mm) (1/8")
0.188" (4.8mm) (3/16")
0.250" (6.4mm) (1/4")
0.375" (9.5mm) (3/8")
Sheath Material
304SS
316SS
NCONEL (600)
446SS
310SS

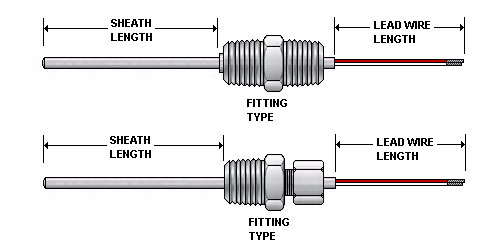

Sheath Length (0.25-600 inches)
Junction
Grounded (Single)
Ungrounded (Single)
Exposed (Single)
Exposed & recessed (Single)
Grounded (Dual)
Ungrounded & isolated (Dual)
Ungrounded Common (Dual)
Exposed & isolated (Dual)
Head Mount Fitting
1/2” npt x 1/2" npt double thread
1/2” npt double thread spring loaded
1/2” npt x 1/2" npt double threadspring loaded w/ oil seal
1/2” npt x 3/4" npt double thread
3/4” npt x 3/4" npt double thread
Single threaded brass compression (no process thread)
Single threaded stainless compression (no process thread)
1/2” npt x 1" npt double thread
Lead Wire Material
Fiberglass (800°F)
Fluoropolymer (400°F)
Polyimide (500°F)
PVC (220°F)
High temperature fiberglass (1200°F)
Fiberglass with stainless steel braid (800°F)
Fluoropolymer with stainless steel braid (400°F)
Fiberglass with armor cable (800°F)
Fluoropolymer with armor cable (400°F)
No lead wire (MGO leads stripped 3")
Lead Wire Length (6-999 inches)
Special Features (Optional)
Stranded conductor (Lead wire)
1.5" long heat shrink where wire exits the probe
Tip
Flat tip probe
Drill point tip
Epoxy Seal
Fluoropolymer covered probe
