Flexible Aluminum Heaters

cartridge heaterscartridge heaters

Product Description

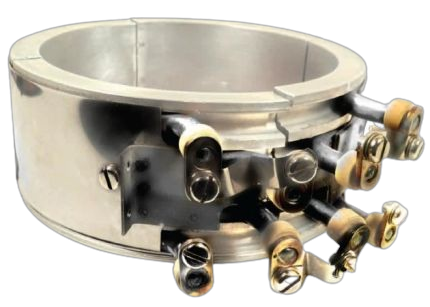

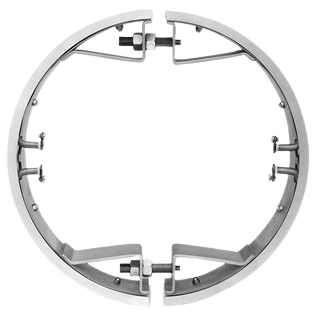

Flexible Aluminum Heat and Cool bands are offered in three brands including Tempco “Maxi-Bands,” Marathon “Star-Flex” and Chromalox” Aluma-Flex.” The flexible aluminum design offers easy installation with a durable contamination proof construction. Bands consist of an extruded aluminum channel segment having grooves fitted with tubular heater elements with sheath temperatures attainable to 650°F and or stainless-steel cooling tubes pressed into the grooved aluminum segments. A thermal expansion clamp holds the assembly in place. Options include heat and cool, heat only and cool only options. Bands are designed for use in external outer diameter and internal inner diameter heating and cooling applications.

The combination of heat elements and cooling tubes in intimate contact with the aluminum segments offers a heating and cooling device with excellent specific heat characteristics which delivers highly efficient and uniform thermal conductivity to the work piece whether it is a blown film die, injection molding process cylinder, extruder barrel or other machinery.

Common Applications

  • Profile and Tube Extrusion
  • Sheet Extrusion
  • Blown Film Extrusion and Dies
  • Injection Molding
  • Blow Molding
  • Extrusion Food Processing
  • Cooling Jacketed Processes

Our Manufacturers

Tempco

Maxibands are designed for heat and cool, heat only or cool only applications. The channels in the extruded aluminum channel track are precision sized to accept a tubular heating element or stainless-steel tube. The close fit supplies an excellent heat sink for rapid heat transfer and good temperature uniformity.

Backer Marathon

Starflex Heat and Cool bands are the well-known “original” industry standard for rugged, reliable aluminum body heating and cooling bands. The Starflex trade name enjoys an trusted wide acceptance due to the products’ long and reliable life characteristics.

Chromalox

The Aluma-Flex Heat and Cool Band is Chromalox’s most robust heater band featuring elements and tubes embedded into a grooved aluminum channel. The Aluma-Flex design ensures efficient and uniform heat transference and long dependable life.
