(214) 340-7500Mica Band Heaters
Mica Band Heater Characteristics

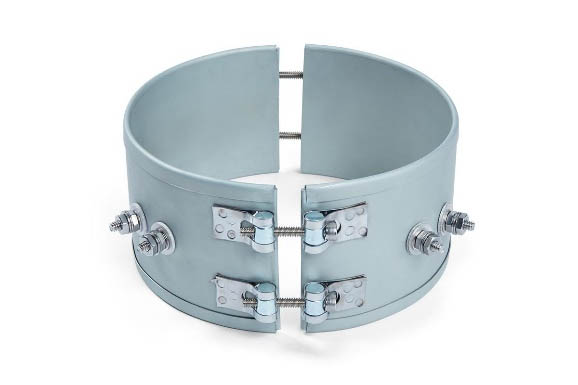

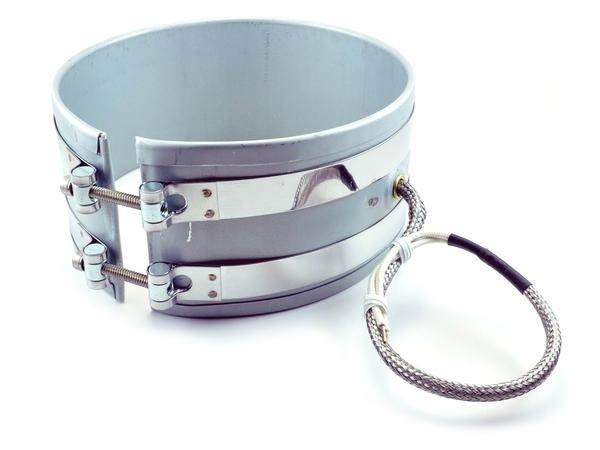

Mica Band heaters are an efficient and economical solution for heating plastic process barrels and other cylindrical process equipment. The band is constructed with a mica core wound with resistance heater wire that sandwiched between two pieces of mica and protected by an outer sheath material usually galvanized steel or stain-less steel. There are multiple termination options, and the mica band lends itself to custom design to accommodate different coverage geometries, holes, and notches.
Mica Band Capabilities and Benefits:
- Sheath temperature operates up to 900°F.
- Watt densities are up to 45 W/in² (7.0 W/cm²)
- UL® Component Recognition is available for applications up to 900°F for sheath temperature.
- Good Clamping will assure efficient heat transfer.
- The low mass design allows quick heat-up and a quick response.
- Our design variations provide convenience and heater protection
Mica Band Applications:
- Plastic extruders.
- Injection molding machines.
- Blown film dies.
- Tank heating
- Pharmaceutical industries.
- Food industries.
- Any cylinder heating application
Our Manufacturers
SWHC
SWHC band heaters are designed and built to the customers’ application requirements. Our technical staff carefully considers the sheath material, watt density, clamping mechanisms and termination that best fits the specific needs of each application. The SWHC team determines the best manufacturing capabilities to assure the use of top-quality materials and insure that delivery requirements are met. The result is a professionally designed heater band that fits, provides uniform heat transfer, and is delivered on time.
Tempco Electric
Duraband is a mica insulated heater incorporating a Low Thermal Expansion Alloy outer sheath that is used as a uniquely designed Built-In Strap. Tempco Durabands are recognized industry wide for high performance, durability and quality.
It is a proven heater design for good life efficiency and dependability. It assures maintaining the lowest winding temperatures possible, keeping a low-mass heating element assembly for fast heat-up and quick thermal response to controls. It incorporates the Low Thermal Expansion Built-In Strap, a unique design feature originally developed and patented by Tempco.
Backer Marathon
When heating is required around a nozzle, process cylinder or a pipe, a mica band heater is an optimal and economical solution. Marathon mica bands offer flexibility and many construction options. Our band heaters are computer designed and manufactured to your specifications. We stock a wide variety of heaters on the shelf that are available for same day shipping. We offer prompt service at competitive prices, a three-day expedited service on custom designs, and there is never a minimum order requirement.
Industrial Heater Corporation
IHCO mica band heaters are custom-made high-quality steel and mica construction heater bands offered in conventional and “XT” high temperature designs. Their capabilities include a wide range of mounting options, European style, and special features such as holes and notching for fitting on process barrels, tooling, and extrusion die equipment.
