Gefran Temperature Instrumentation

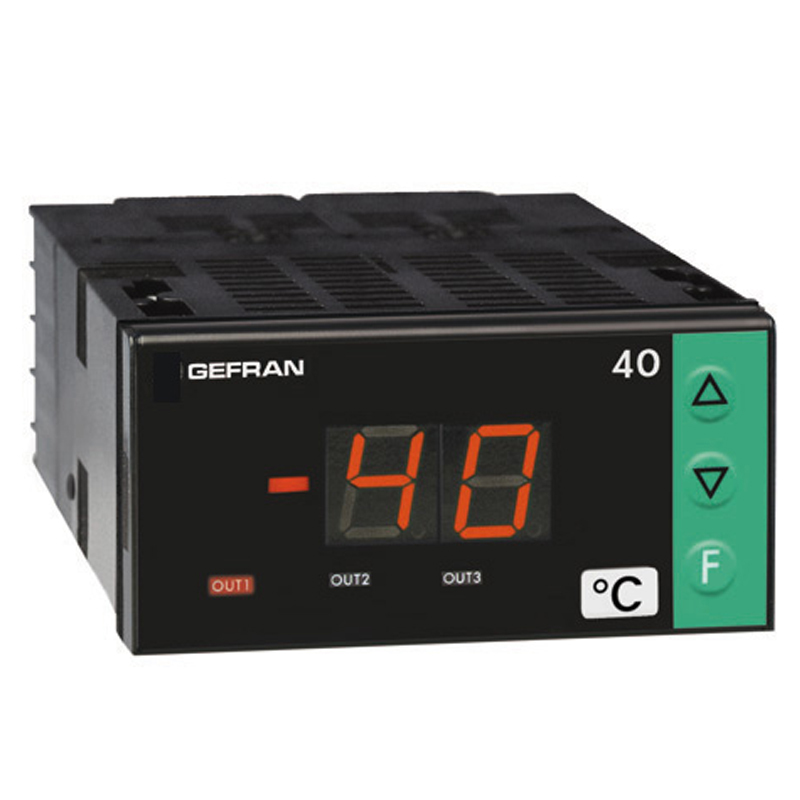

40T72 Indicator/Alarm Unit

Microprocessor based indicator in 72x36 format manufactured with SMT.

The instruments have a lexan membrane faceplate (guaranteed to IP65) which has 3 keys, a 2, 3 / 4 digit display.

The input signal can be selected from a wide range of sensors:

• Thermocouples of type J, K, R, S, T, B, E, N, L GOST, U, G, D, C
• Resistance thermometers Pt100, Pt100J (japanese standard) 2 / 3 wire
• PTC and NTC themistors
• Linear inputs 0 to 60/12 to 60mV, 0 to 20/4 to 20mA, 0 to 10/2 to 10/0 to 5/1 to 5/0 to 1/0, 2 to1V

The selection is made using the faceplate keys and correct input contact.

No external shunt or adapter is required.

A digital input (24Vdc/4mA) is available for resetting, hold, flash, peak handling or releasing latch. The instruments have a maximum of 3 outputs that can be mechanical relays (5A/250V) or logic outputs (0 to 11Vdc).

In alternative to output 3 a 4 to 20mA output is available (max. 150 Ohm) for retransmission of the measured input signal, or a digital input (24Vdc/4mA) can be provided which can be used for resetting, hold, flash, peak handling or releasing latch.

Finally, a triac can be fitted (as an alternative to the other two relay outputs) that can drive resistive loads up to a maximum of 2,5A at 220V.

The programming of the instrument is made easy by grouping the parameters in function blocks (CFG for the alarm hysteresis, Inp for the inputs, Out for the outputs...) and by a simplified data entry menu.

The configuration can be simplified even further using the PC programming kit made up of a connection cable and a menu guide program that runs under Windows (see data sheet cod. 80021).

A configurable personal software protection code (password protection) can be used to restrict the levels of editing and displaying the configuration parameters.

Description

• Faceplate configurable input
• Protected by a personal code
• Configurable by a serial link
• Transmitter power supply incorporated
• Custom thermocouple linearisation available
• Internal linearisation for engineering units
• Labels provided for the more common physical units
• Sampling time and trip intervention programmable between 15 and 120 msec with resolution between 2000 and 8000 steps
• Retransmission of the measured variable signal
• 3 trip points, completely configurable from the faceplate

40T48 Indicator/Alarm Unit

Overview

Microprocessor based indicator in both 48x48 (1/16 DIN) formats manufactured with SMT.

The instruments have a lexan membrane faceplate (guaranteed to IP65) which has 3 keys, a 4 digit display and 3 indicating LED's for the output statuses.

The input signal can be selected from a wide range of sensors:

• Thermocouples of type: J, K, R, S, T, B, E, N, L GOST, U, G, D, C
• Resistance thermometers Pt100, Pt100J 2 / 3 wire
• PTC and NTC themistors
• Linear inputs 0 to 60/12 to 60mV, 0 to 20/4 to 20mA, 0 to 10/2 to 10/0 to 5/1 to 5/0 to 1/0, 2 to1V

The selection is made using the faceplate keys and correct input terminals.

No external shunt or adapter is required. A digital input (24Vdc/4mA) is available for resetting, hold, flash, peak handling or releasing latch.

No external shunt or adapter is required. A digital input (24Vdc/5mA) is available for resetting, hold, flash, peak handling or releasing latch. The instruments have a maximum of 4 outputs that can be mechanical relays (5A/250V) or logic outputs 24V±10% (10Vmin / 20mA).

One output of 4 to 20mA (max. 500 Ohm) is available for retranmitting the measured input signal.

The retransmission output, the digital input and the third output are alternatives.

The options include a triac output that can directly drive resistive loads up to a maximum of 1A at 240V.

The programming of the instrument is made easy by grouping the parameters in function blocks (CFG for the alarm hysteresis, Inp for the inputs, Out for the outputs...) and by a simplified data entry menu.

The configuration can be simplified even further using the PC programming kit made up of a connection cable and a menu guide program that runs under Windows (see technical data).

A configurable personal software protection code (password protection) can be used to restrict the levels of editing and displaying the configuration parameters.

Description

• Faceplate configurable input
• Protected by a personal code
• Configurable by a serial link
• Transmitter power supply incorporated
• Custom thermocouple linearisation available
• Internal linearisation for engineering units
• Labels provided for the more common physical units
• Sampling time and trip intervention programmable between 15 and 120msec with resolution between 2000 and 8000 steps
• Retransmission of the measured variable signal
• 3 trip points, completely configurable from the faceplate
• 4 trip points completely configurable from keyboard
• RS485 optically isolated serial line
• Protocol : GEFRAN CENCAL or MODBUS RTU
• Rapid configuration from PC with GF_eXpress package

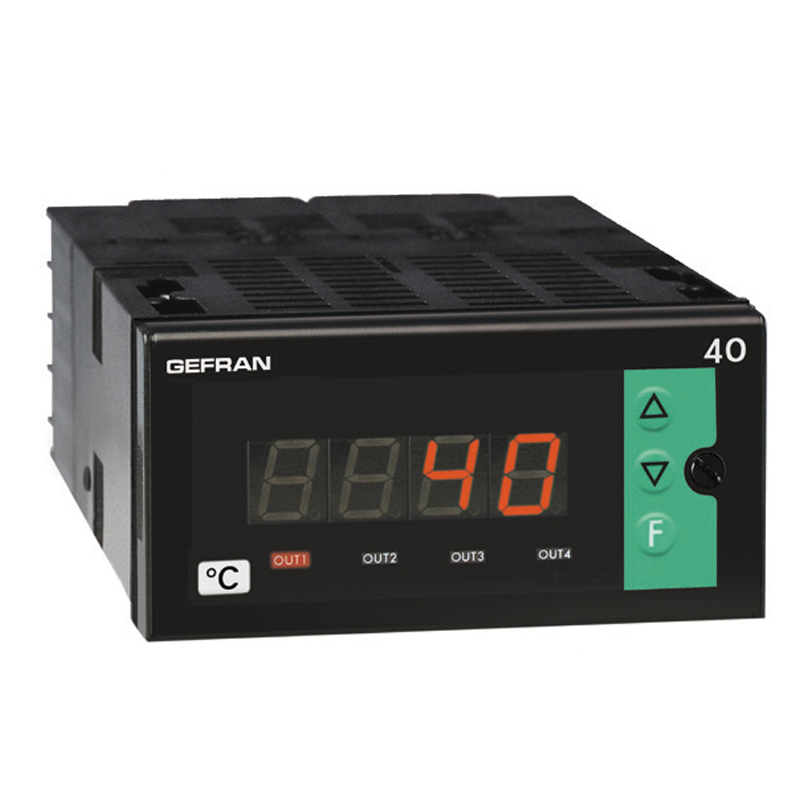

40T96 Indicator/Alarm Unit

Overview

Microprocessor based indicator in both 96x48 (1/8 DIN) format manufactured with SMT.

The instrument have a lexan membrane faceplate (guaranteed to IP65) which has 3 keys, a 3 / 4 digit display format, and 3 indicating LED's for the output statuses.

The input signal can be selected from a wide range of sensors:

• Thermocouples of type J, K, R, S, T, B, E, N, L GOST, U, G, D, C
• Resistance thermometers Pt100, Pt100J (japanese standard) 2 / 3 wire
• PTC and NTC themistors
• Linear inputs 0 to 60/12 to 60mV, 0 to 20/4 to 20mA, 0 to 10/2 to 10/0 to 5/1 to 5/0 to 1/0, 2 to1V

The selection is made using the faceplate keys.

The instrument is available in version base, with two outputs to relé (2R), and expandible version.

The instruments have a maximum of 4 outputs that can be mechanical relays (5A,250Vac/30Vdc cosφ=1) or logic outputs (0 to 11Vdc).

A digital input (24Vdc/5mA) is available (for resetting, hold, flash, peak handling or releasing latch) and one output of 0...10V, 0/4 to 20mA (max. 500) is available for retranmitting the measured input signal.

The retransmission output, the digital input and the third output are available contemporaneously.

The serial communication option (available in RS485 standard) allows connection to supervision systems and PLCs with two protocols: GEFRAN CENCAL and MODBUS RTU.

Finally, a triac can be fitted (as an alternative to the output 1) to drive resistive loads up to a maximum of 1A at 240V.

The programming of the instrument is made easy by grouping the parameters in function blocks (CFG for the alarm hysteresis, Inp for the inputs, Out for the outputs...) and by a simplified data entry menu.

The configuration can be simplified even further using the PC programming kit made up of a connection cable and a menu guide program that runs under Windows (see technical data GF_eXpress).

A configurable personal software protection code (password protection) can be used to restrict the levels of editing and displaying the configuration parameters.

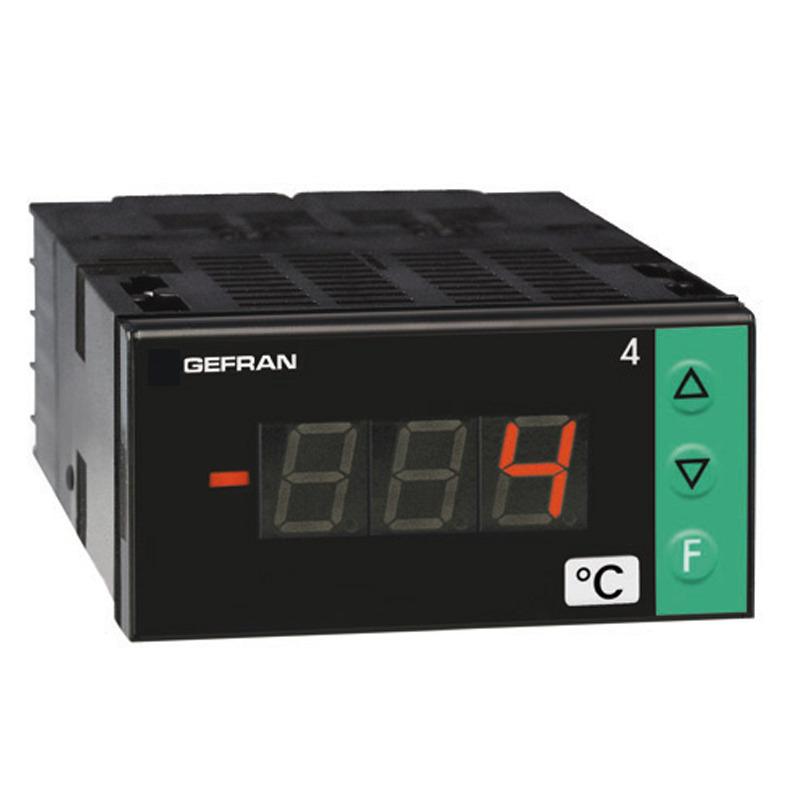

4T72 Indicator

Overview

Microprocessor based indicator in 72x36 format manufactured with SMT.

The instruments have a lexan membrane faceplate (guaranteed to IP65) which has 3 keys, a 2, 3 / 4-digit display.

The input signal can be selected from a wide range of sensors:

• Thermocouples of type J, K, R, S, T, B, E, N, L GOST, U, G, D, C
• Resistance thermometers Pt100, Pt100J (japanese standard) 2 / 3 wire
• PTC and NTC themistors
• Linear inputs 0 to 60/12 to 60mV, 0 to 20/4 to 20mA, 0 to 10/2 to 10/0 to 5/1 to 5/0 to 1/0, 2 to1V

The selection is made using the faceplate keys and correct input contact.

No external shunt or adapter is required.

The programming of the instrument is made easy by grouping the parameters in function blocks and by a simplified data entry menu.

The configuration can be simplified even further using the PC programming kit made up of a connection cable and a menu guide program that runs win windows (see data sheet cod. 80021).

A configurable personal software protection code (password protection) can be used to restrict the levels of editing and displaying the configuration parameters.

4T48 Indicator

Microprocessor based indicator in both 48x48 (1/16 DIN) formats manufactured with SMT.

The instruments have a lexan membrane faceplate (guaranteed to IP65) which has 3 keys, a 4 digit display and 3 indicating LED's for the output statuses.

The input signal can be selected from a wide range of sensors:

• Thermocouples of type: J,K,R,S,T, B, E, N, L GOST, U, G, D, C
• Resistance thermometers Pt100, Pt100J 2 / 3 wire
• PTC and NTC themistors
• Linear inputs 0 to 60/12 to 60mV, 0 to 20/4 to 20mA, 0 to 10/2 to 10/0 to 5/1 to 5/0 to 1/0, 2 to1V

The selection is made using the faceplate keys and correct input terminals.

No external shunt or adapter is required.

A digital input (24Vdc/5mA) is available for resetting, hold, flash, peak handling or releasing latch.

The instruments have a maximum of 4 outputs that can be mechanical relays (5A/250V) or logic outputs 24V±10% (10Vmin / 20mA).

One output of 4 to 20mA (max. 500 Ohm) is available for retranmitting the measured input signal.

The retransmission output, the digital input and the third output are alternatives.

The options include a triac output that can directly drive resistive loads up to a maximum of 1A at 240V.

The programming of the instrument is made easy by grouping the parameters in function blocks (CFG for the alarm hysteresis, Inp for the inputs, Out for the outputs...) and by a simplified data entry menu.

The configuration can be simplified even further using the PC programming kit made up of a connection cable and a menu guide program that runs under Windows (see technical data).

A configurable personal software protection code (password protection) can be used to restrict the levels of editing and displaying the configuration parameters.

4T96 Indicator

Microprocessor based indicator in both 96x48 (1/8 DIN) formats manufactured with SMT.

The instrument have a lexan membrane faceplate (guaranteed to IP65) which has 3 keys, a 3 / 4 digit display.

The input signal can be selected from a wide range of sensors:

• Thermocouples of type J, K, R, S, T, B, E, N, L GOST, U, G, D, C
• Resistance thermometers Pt100, JPt100; 2 / 3 wire
• PTC and NTC themistors
• Linear inputs 0 to 60/12 to 60mV, 0 to 20/4 to 20mA, 0 to 10/2 to 10/0 to 5/1 to 5/0 to 1/0, 2 to1V

The selection is made using the faceplate keys and correct input contact.

No external shunt or adapter is required.

The programming of the instrument is made easy by grouping the parameters in function blocks and by a simplified data entry menu.

The configuration can be simplified even further using the PC programming kit made up of a connection cable and a menu guide program that runs under windows (see data sheet cod. GF_eXpress).

A configurable personal software protection code (password protection) can be used to restrict the levels of editing and displaying the configuration parameters.

650L Indicator/Safety Alarm Limit (FM)

Overview

Gefran 650L Series indicators are designed to interrupt the output in the event that the safety limit of an industrial process is exceeded.

Once a limit exceeded event occurs it is latched until reset by an operator acknowledgment action.

This reset can be done by the operator from the specific (red R) front key , digital input (optional) or serial line (optional).

The displays show the process values, plus multilingual scrolling messages for diagnostics and alarms.

The local configuration operation is performed with front panel keys. Permitted key presses are highlighted by their associated LED's above each key.

Easy commissioning is accomplished with a simplified and guided configuration for manual free programming, with only a few required parameters accompanied by intuitive on display help messages.

Using GF_eXpress software with a programming cable and PC, you can program the extended configuration, create recipes and update the firmware without having to switch on the instrument.

Thanks to the Smart Configurator function, you can create the initial required parameter recipe by answering a few simple questions. The parameters can always be reset, either from the keypad or from the GF_eXpress software.

The device offers complete diagnostics for a broken or an incorrectly connected sensor and has operation counters with settable alarm limits which are useful for scheduling preventive maintenance. A trigger counter and alarm memory reset timer are available for alarm 1. This information can help to evaluate furnace deterioration and plan maintenance work.

Maintenance of the system in which the device is installed is made easier by the ability to replace the instrument at any time simply by removing it from the case. No additional steps are needed.

• Latched Setpoint Alarm relay to interupt the output in the event that the safety limit is exceeded
• Alarm output remains latched until acknowledged by operator input
• Alarm reset from front key, remote digital input or serial communications
• Alarm limit exceeded count
• Alarm limit exceeded timer
• Operator interface with large LCD Display, customizable, with choice of colors
• Scrolling diagnostics messages, configurable, in the selected language
• Easy guided configuration even with power off using GF_Express Software
• Multiple password levels
• Universal input configurable for thermocouples, resistance thermometers, linear or custom inputs
• Relay, logic and optional outputs
• RS485 serial communication in Modbus RTU
• Easy swap case for simple replacement
• Sampling time 60 ms

1250L Indicator/Safety Alarm Limit (FM)

Overview

Indicators 1250 L used to limit overheating in industrial processes.

In the event of alarm, the instrument latches the fault conditions until reset by the operator. Reset can be run by the operator from the front key (red R), from the digital input (optional) or serial line (optional).

As an additional feature, the instrument counts the number of times the alarm limit is exceeded and total amount of time the alarm is active.

This information can help to evaluate furnace deterioration and plan maintenance work.

The displays show the process values, plus multilingual scrolling messages for diagnostics and alarms.

The 1250 L model includes a segmented bar that graphically displays the temperature deviation from the alarm limit.

Configuration and unit operation is done with the front keys.

The keys have dual-function LEDs indicating pressing of the keys. The LEDs provide feedback for pressed key and also provide guidance for permitted operations.

Initial commissioning is simplified by guided configuration text prompts that cover the commonly used base parameters accompanied by in line help messages.

With GF_eXpress software and PC, you can program the extended configuration, create recipes and update the firmware

without having to apply power to the instrument.

Thanks to the Smart Configurator function, you obtain the required configuration by answering a few simple questions. The initial parameters can always be reset, both from the keypad and from the GF_eXpress software.

The devices offer complete diagnostics (broken or incorrect connection of sensor), operation count, settable alarm limits (useful for scheduling preventive maintenance) A trigger meter and alarm memory reset timer are available for alarm 1.

Maintenance of the system in which the device is installed is made easier by the ability to replace the instrument at any time simply by removing it from the faceplate.

No additional steps are needed.

Description

• Safety high temperature alarm threshold with relay output
• Retained alarm output with manual operator acknowledge
• Dedicated frontal button for alarm reset
• Counting of high temperature alarm tripping
• Time totalisation of high temperature alarm tripping
• Operator interface with large LCD Display, customizable, with choice of colors
• Scrolling diagnostic messages, configurable, in the selected language
• Easy, guided configuration, copy/paste parameters even with power off
• Different password levels
• Universal input configurable for thermocouples, RTDs, Current/Voltage inputs
• Relay, logic,
• RS485 serial communication in Modbus RTU
• Removable faceplate for quick replacement
• Sampling time 60 ms

2308 Multizone indicator / alarm unit

The 2308 is a universal panel instrument for displaying up to 8 different variables with configurable alarm or switch points.

Its characteristics of configurability, as well as speed of acquisition and response, mean that it is an extremely versatile instrument that may be used for the display of physical phenomena with alarm switching in a diversity of industrial applications.

The instrument can accept temperature signals from isolated thermocouples, even of different types, and from 2 or 3-wires resistance thermometers, as well as from linear signals in dc voltage or current (e.g. potentiometers, amplified pressure probes, transmitters, etc.).

The selection of the input type for each channel is made by harware configuration, while the scale range (for linear inputs) may be configured from the front panel keys (software).

The instrument may be also be configured for 8 ac voltage inputs.

Shunts and dividers are available to condition the various ac voltage and current signal.

Alarm output are available with a minimum of 2 to a maximum of 10 using the MD81 external expansion unit.

The alarms themselves have multiple functions and allow ample freedom of choice.

In particular, AL1 and AL2 can be attributed to one of any of the 8 channels, or to indicate the state of the alarm condition of the input group (selectable in the range 1...8).

The passive current loop or RS485 serial link is convertible to RS232 using the CLB94 adapter.

Description

• Up to 8 displayed points with manual or automatic scanning
• Thermocouple, resistance thermometer, DC V/I, AC V/I, potentiometer inputs
• Heterogeneous inputs
• Up to 10 freely configurable alarm points
• Optoisolated 4-wires digital communication.
• Protocol: GEFRAN CENCAL or MODBUS
