Melt Pressure Systems

W0 Diatherimic Oil FDA - Pressure control set (1/4 DIN)

The W0 Series is a melt pressure control system which comes complete with the following items:

• W3x-6-M-xxxx-1-4-D-000 (oil-filled melt pressure transducer)
• 2500-0-0-0-W-0-1 (pressure controller)
• C08WLS (25 foot 6-pin cable)
• SF18 (mounting bracket)

The W0 Series is an excellent solution for those who wish to have the accuracy and stability of a transducer and digital controller at a great price.

Indicator

• Economically priced
• Displays pressure in a 5-digit LED display
• Auto zero
• Auto span
• Auto calibration
• 4 alarms with adjustable setpoint
• Touch-type keypad
• Built-in strain gage bridge excitation
• Filter for digit stabilization
• Coded access for user lockout

Transducer

• Better than ±0.50% accuracy
• Fluid-filled system for temperature stability
• 80% output signal for easy calibration
• 17-7 PH stainless steel corrugated diaphragm with GTP+ coating
• Oil-fill is FDA approved - meets requirements CFR172.3620 and CFR172.878

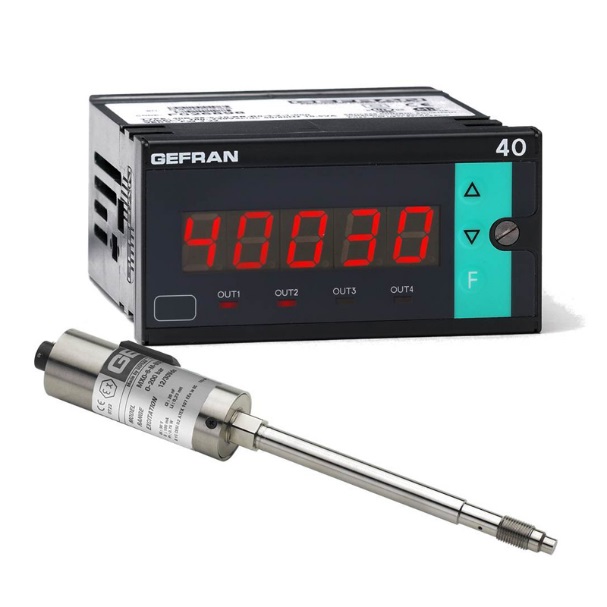

W7 Diathermic Oil FDA - Pressure monitoring set (1/8 DIN)

The W7 Series is a melt pressure monitoring system which comes complete with the following items:

• W3x-6-M-xxxx-1-4-D-000 (oil-filled melt pressure transducer)
• 40B-96-5-10-RR-R0-3-0-1 (1/8 DIN pressure indicator)
• C08WLS (25 foot 6-pin cable)
• SF18 (mounting bracket)

The W7 Series is an excellent solution for those who wish to have the accuracy and stability of a transducer and digital indicator at a great price.

Indicator

• Economically priced
• Displays pressure in a 5-digit LED display
• Auto zero
• Auto span
• Auto calibration
• 2 alarms with adjustable setpoint
• Touch-type keypad
• Built-in strain gage bridge excitation
• Filter for digit stabilization
• Coded access for user lockout

Transducer

• Better than ±0.50% accuracy
• Fluid-filled system for temperature stability
• 80% output signal for easy calibration
• 17-7 PH stainless steel corrugated diaphragm with GTP+ coating
• Oil-fill is FDA approved - meets requirements CFR172.3620 and CFR172.878

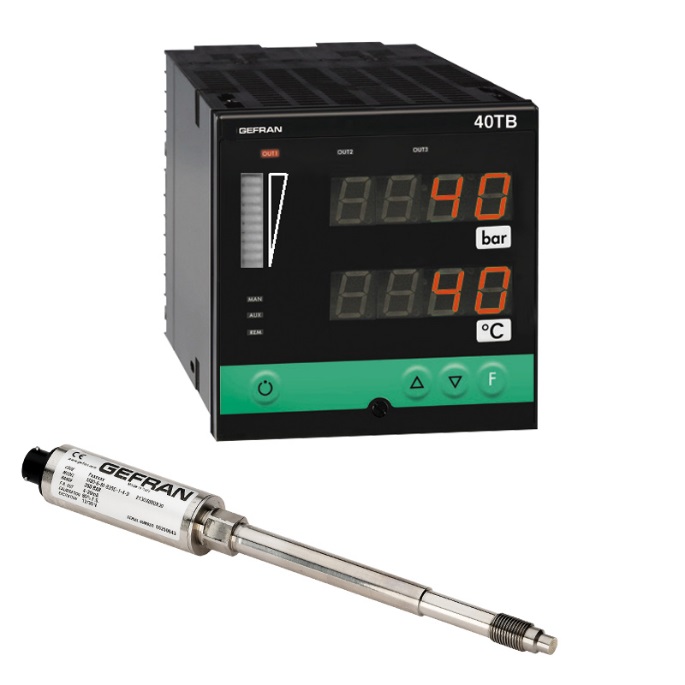

W8 Diathermic Oil FDA - Pressure monitoring set (1/4 DIN)

The W8 Series is a melt pressure monitoring system which comes complete with the following items:

• W3x-6-M-xxxx-1-4-D-000 (oil-filled melt pressure transducer)
• 40TB-10-RR-R-1-0-1 (1/4 DIN pressure indicator)
• C08WLS (25 foot 6-pin cable)
• SF18 (mounting bracket)

The W8 Series is an excellent solution for those who wish to have the accuracy and stability of a transducer and digital indicator at a great price.

Indicator

• Economically priced
• Displays pressure in a 4-digit LED display
• Auto zero
• Auto span
• Auto calibration
• 2 alarms with adjustable setpoint
• Touch-type keypad
• Built-in strain gage bridge excitation
• Filter for digit stabilization
• Coded access for user lockout

Transducer

• Better than ±0.50% accuracy
• Fluid-filled system for temperature stability
• 80% output signal for easy calibration
• 17-7 PH stainless steel corrugated diaphragm with GTP+ coating
• Oil-fill is FDA approved - meets requirements CFR172.3620 and CFR172.878

W9 Diathermic Oil FDA - Pressure monitoring set (1/4 DIN)

The W92 is a melt pressure and temperature monitoring system which comes complete with the following items:

• W32-6-M-xxxx-1-4-D-000 (oil-filled melt pressure transducer with type “J” thermocouple)
• 40TB-10-RR-R-2-0-1 (1/4 DIN pressure and temperature indicator)
• C08WLS (25 foot 6-pin cable)
• SF18 (mounting bracket)

The W92 is an excellent solution for those who wish to have the accuracy and stability of a transducer and digital indicator at a great price.

Indicator

• Economically priced
• Displays pressure in a 4-digit LED display
• Auto zero
• Auto span
• Auto calibration
• 2 alarms with adjustable setpoint
• Touch-type keypad
• Built-in strain gage bridge excitation
• Filter for digit stabilization
• Coded access for user lockout

Transducer

• Better than ±0.50% accuracy
• Fluid-filled system for temperature stability
• 80% output signal for easy calibration
• 17-7 PH stainless steel corrugated diaphragm with GTP+ coating
• Oil-fill is FDA approved - meets requirements CFR172.3620 and CFR172.878

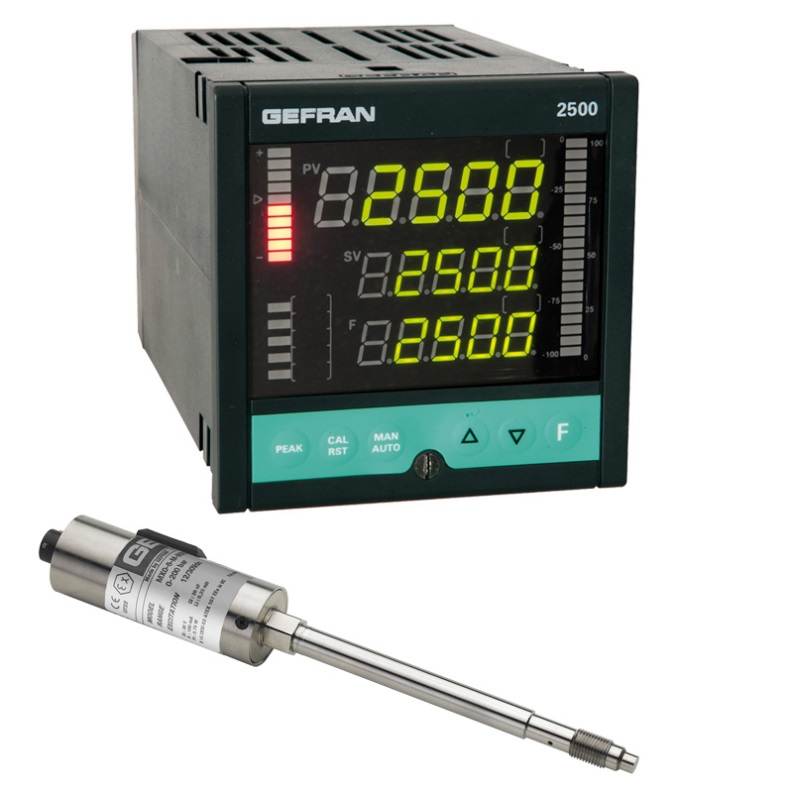

M0 Mercury Filled - Pressure control set (1/4 DIN)

The M0 Series is a melt pressure control system which comes complete with the following items:

• M3x-6-M-xxxx-1-4-D-000 (melt pressure transducer)
• 2500-0-0-0-W-0-1 (1/4 DIN pressure controller)
• C08WLS (25 foot 6-pin cable)
• SF18 (mounting bracket)

The M0 Series is an excellent solution for those who wish to have the accuracy and stability of a transducer and digital controller at a great price.

Indicator

• Displays pressure in a 5-digit LED display
• Auto zero
• Auto span
• Auto calibration
• 4 alarms with adjustable setpoint
• Touch-type keypad
• Built-in strain gage bridge excitation
• Filter for digit stabilization
• Coded access for user lockout

Transducer

• Better than ±0.50% accuracy
• Fluid-filled system for temperature stability
• 80% output signal for easy calibration
• 15-5 PH stainless steel diaphragm with GTP+ coating

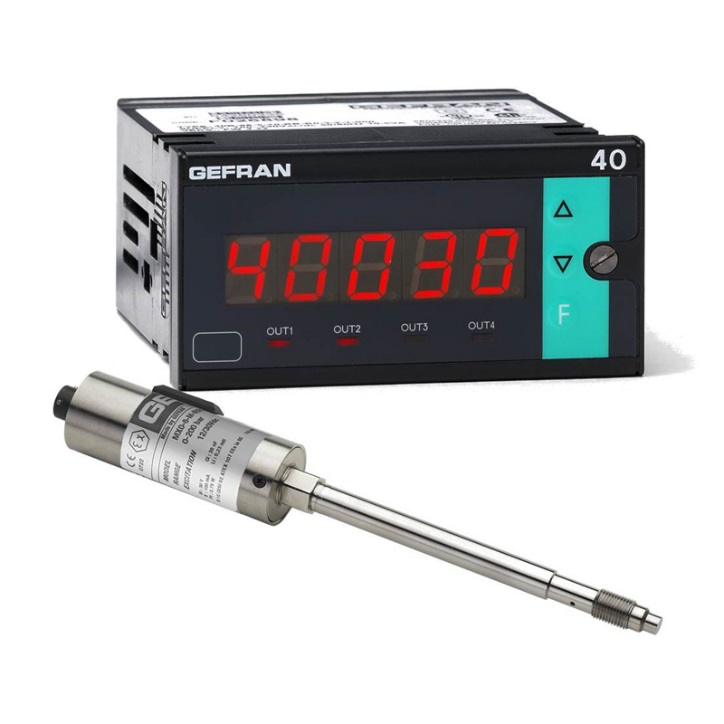

M7 Mercury Filled - Pressure monitoring set (1/8 DIN)

The M7 Series is a melt pressure monitoring system which comes complete with the following items:

• M3x-6-M-xxxx-1-4-D-000 (melt pressure transducer)
• 40B-96-5-10-RR-R0-3-0-1 (1/8 DIN pressure indicator)
• C08WLS (25 foot 6-pin cable)
• SF18 (mounting bracket)

The M7 Series is an excellent solution for those who wish to have the accuracy and stability of a transducer and digital indicator at a great price.

Indicator

• Economically priced
• Displays pressure in a 5-digit LED display
• Auto zero
• Auto span
• Auto calibration
• 2 alarms with adjustable setpoint
• Touch-type keypad
• Built-in strain gage bridge excitation
• Filter for digit stabilization
• Coded access for user lockout

Transducer

• Better than ±0.50% accuracy
• Fluid-filled system for temperature stability
• 80% output signal for easy calibration
• 15-5 PH stainless steel diaphragm with GTP+ coating

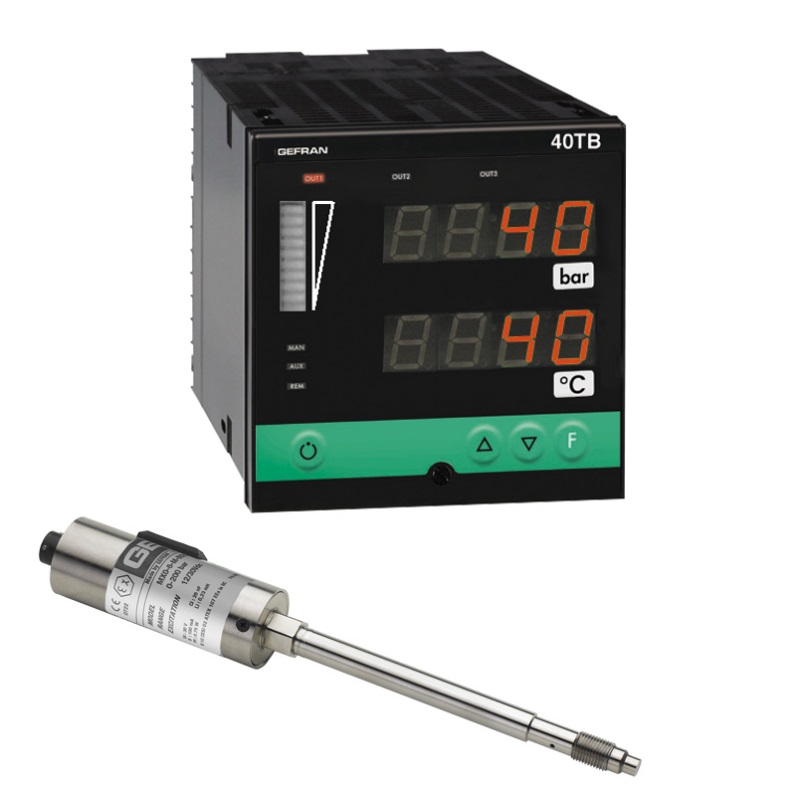

M8 Mercury Filled - Pressure monitoring set (1/4 DIN)

The M8 Series is a melt pressure monitoring system which comes complete with the following items:

• M3x-6-M-xxxx-1-4-D-000 (melt pressure transducer)
• 40TB-10-RR-R-1-0-1 (1/4 DIN pressure indicator)
• C08WLS (25 foot 6-pin cable)
• SF18 (mounting bracket)

The M8 Series is an excellent solution for those who wish to have the accuracy and stability of a transducer and digital indicator at a great price.

Indicator

• Economically priced
• Displays pressure in a 4-digit LED display
• Auto zero
• Auto span
• Auto calibration
• 2 alarms with adjustable setpoint
• Touch-type keypad
• Built-in strain gage bridge excitation
• Filter for digit stabilization
• Coded access for user lockout

Transducer

• Better than ±0.50% accuracy
• Fluid-filled system for temperature stability
• 80% output signal for easy calibration
• 15-5 PH stainless steel diaphragm with GTP+ coating

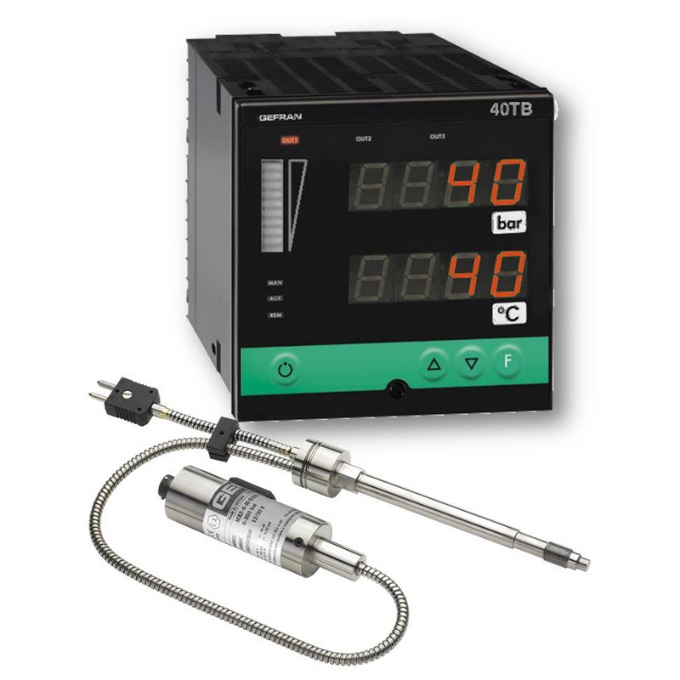

M9 Mercury Filled - Pressure and temperature monitoring set (1/4 DIN)

The M92 is a melt pressure and temperature monitoring system which comes complete with the following items:

• M32-6-M-xxxx-1-4-D-000 (melt pressure transducer with type “J” thermocouple)
• 40TB-10-RR-R-2-0-1 (1/4 DIN pressure and temperature indicator)
• C08WLS (25 foot 6-pin cable)
• SF18 (mounting bracket)

The M92 is an excellent solution for those who wish to have the accuracy and stability of a transducer and digital indicator at a great price.

Indicator

• Economically priced
• Displays pressure in a 4-digit LED display
• Auto zero
• Auto span
• Auto calibration
• 2 alarms with adjustable setpoint
• Touch-type keypad
• Built-in strain gage bridge excitation
• Filter for digit stabilization
• Coded access for user lockout

Transducer

• Better than ±0.50% accuracy
• Fluid-filled system for temperature stability
• 80% output signal for easy calibration
• 15-5 PH stainless steel diaphragm with GTP coating
